Packout Drawer Insert For M12 Gen 3 Drill/Impact Driver - Jonah Pope Design (JPD-DID3)

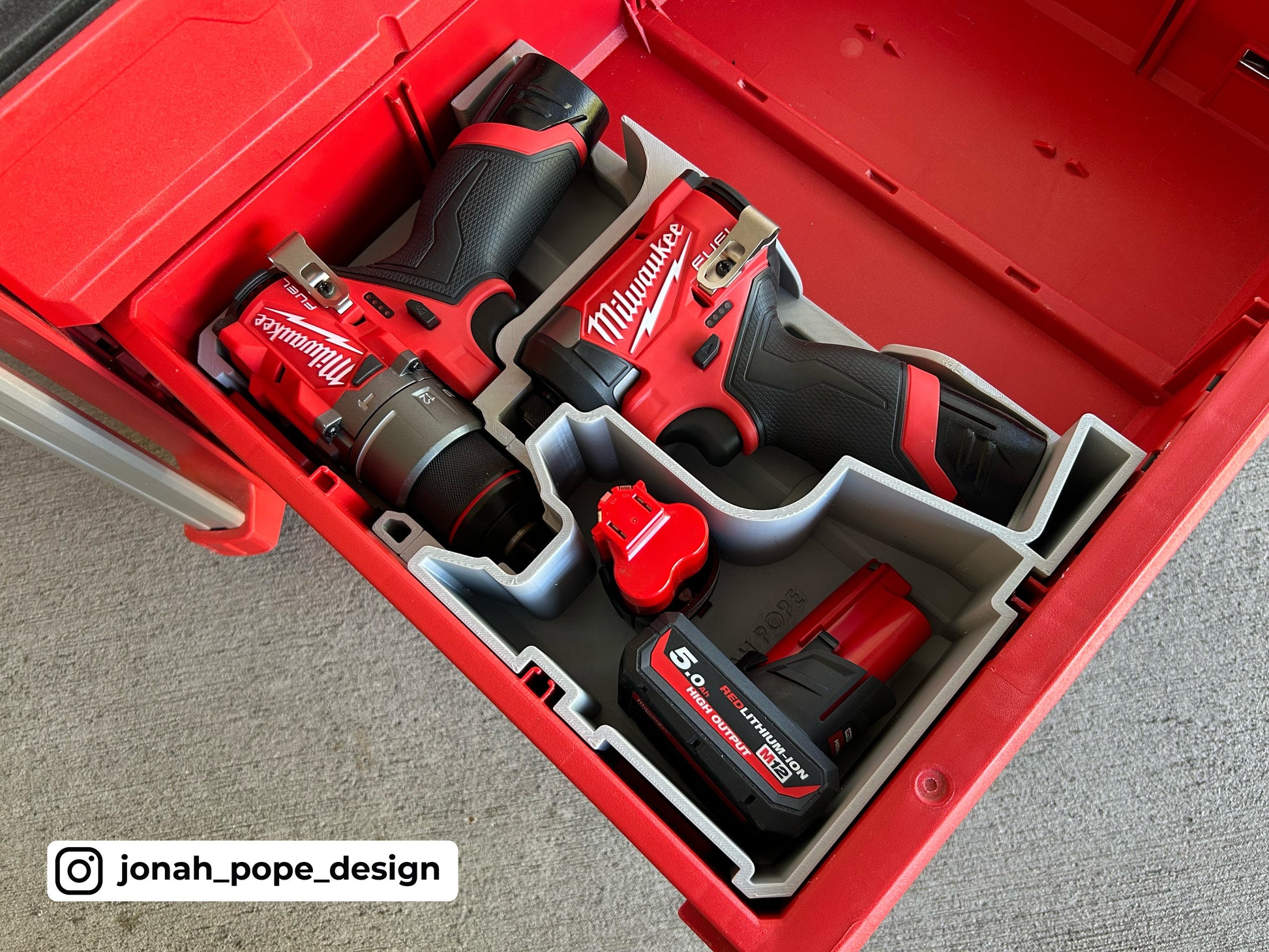

This insert is designed to hold:

• M12 FUEL Drill 3403 or M12 FUEL Hammer Drill 3404
• M12 FUEL Impact Driver 3453
• (3) Small Format M12 Batteries
• (1) Large Format M12 Battery

It fits in:

• 2-Drawer Packout 48-22-8442
• 3-Drawer Packout 48-22-8443
• Multi-Depth 3-Drawer Packout 48-22-8447

BELT HOOK AND DRIVER BIT HOLDERS:

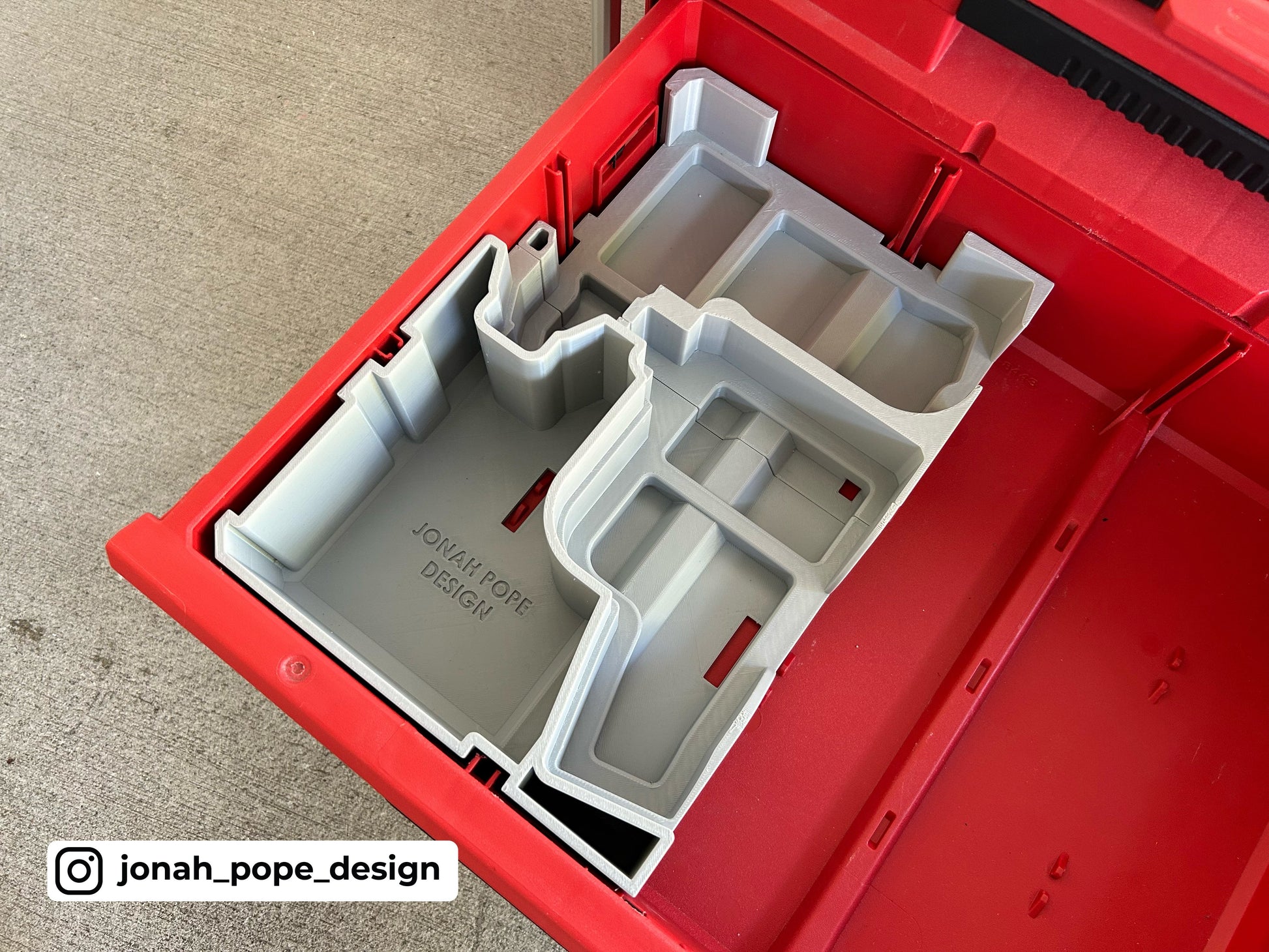

I've designed the files so you can have the belt hook and bit holder on either side of the tool. Pictures are included in the gallery above showing the clearances on drawer closing. The insert pictured is for the left side of the drawer but I've included files for the right side as well which are mirrored.

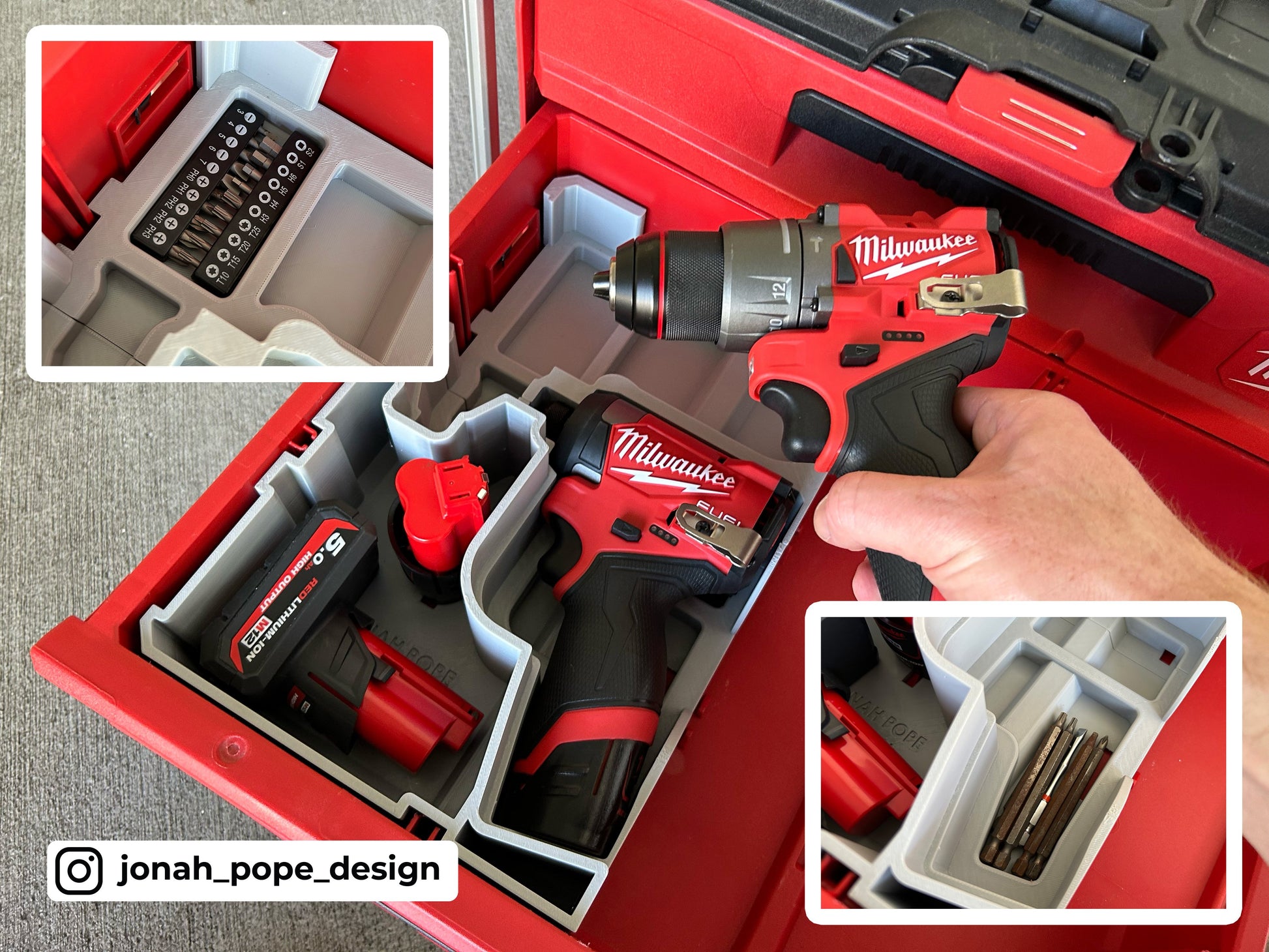

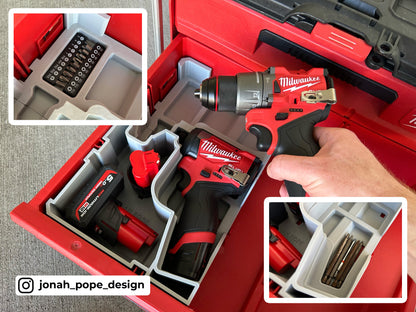

Impact driver note: If you have the bit holder attached such that is facing downwards in the insert, you may have to pop out the stored driver bit prior to placing the tool in.

Milwaukee drawers have 2 large ridges running along the bottom so if you have a driver bit hanging out of the holder, this raised ridge may inhibit the tool being placed into the insert. The tool will fit without issue with the holder still attached if you just pop the driver bit out. There is ample space under the tool for bit storage which will allow for bit storage. If you wish to avoid this, print the files for the design on the opposite side of the drawers so the driver bit holder faces up. The easiest way to remember this is as follows:

• Driver bit holder on left side of the tool = print files for the "left" half so it faces up

• Driver bit holder on right side of the tool = print files for the "right" half so it faces up
