Packout Drawer Insert For M18 Gen 4 Drill and Impact Driver -Jonah Pope Design (JPD-18DID)

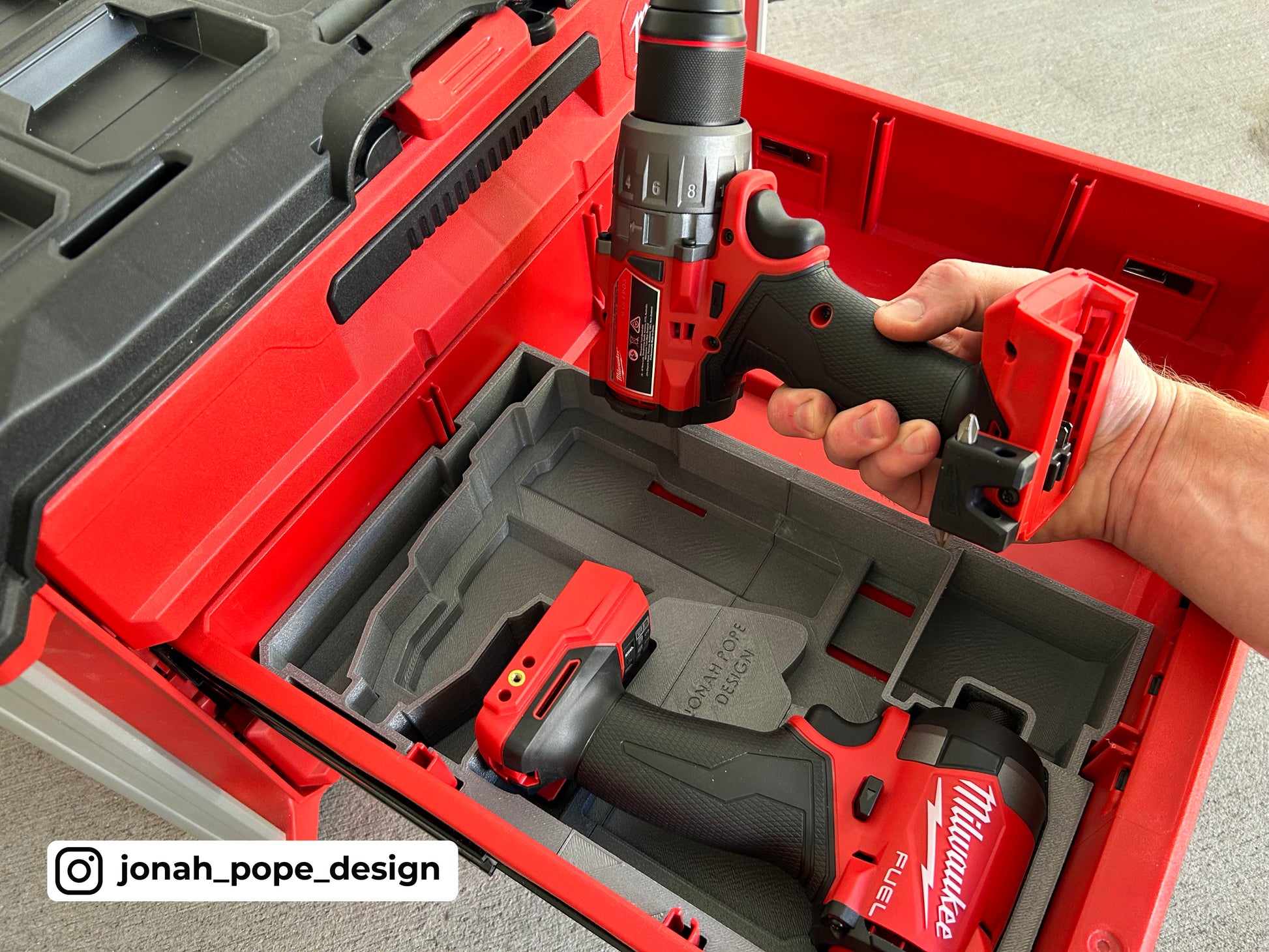

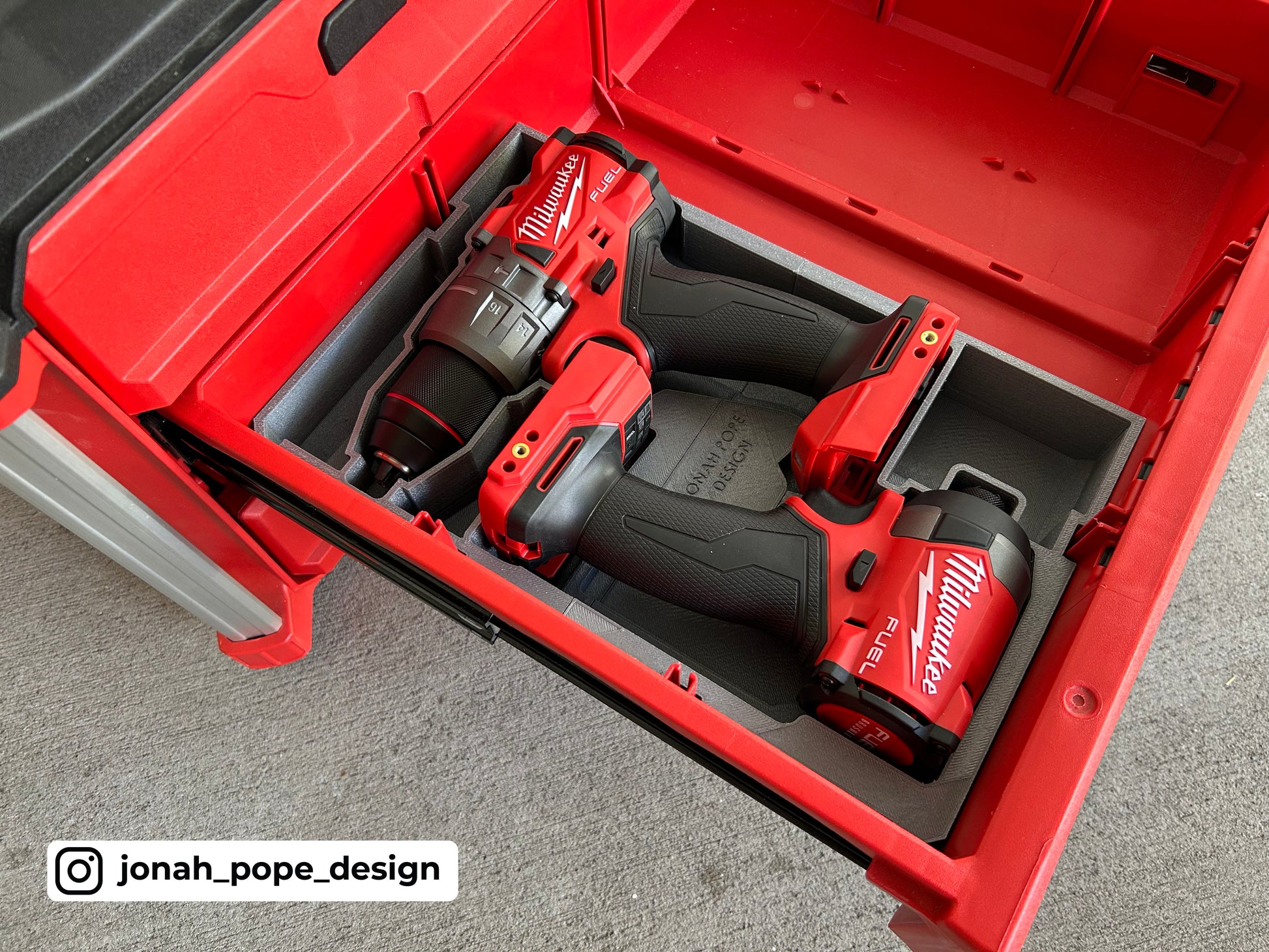

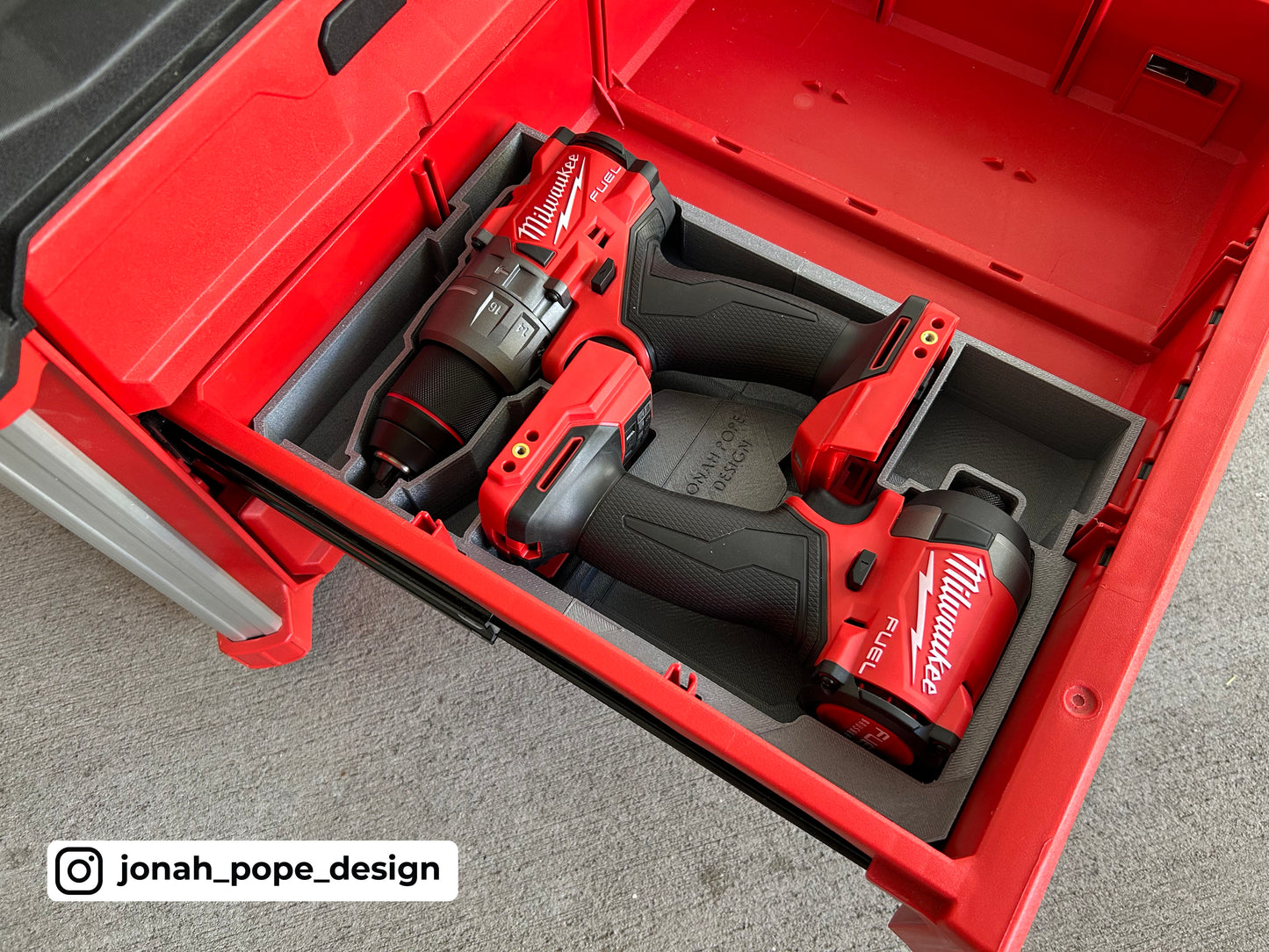

This insert is designed to hold:

• M18 FUEL Drill 2903 or M18 FUEL Hammer Drill 2904
• M18 FUEL Impact Driver 2953

It fits in:

• 2-Drawer Packout 48-22-8442
• 3-Drawer Packout 48-22-8443
• Multi-Depth 3-Drawer Packout 48-22-8447

DRIVER BIT HOLDER NOTE:

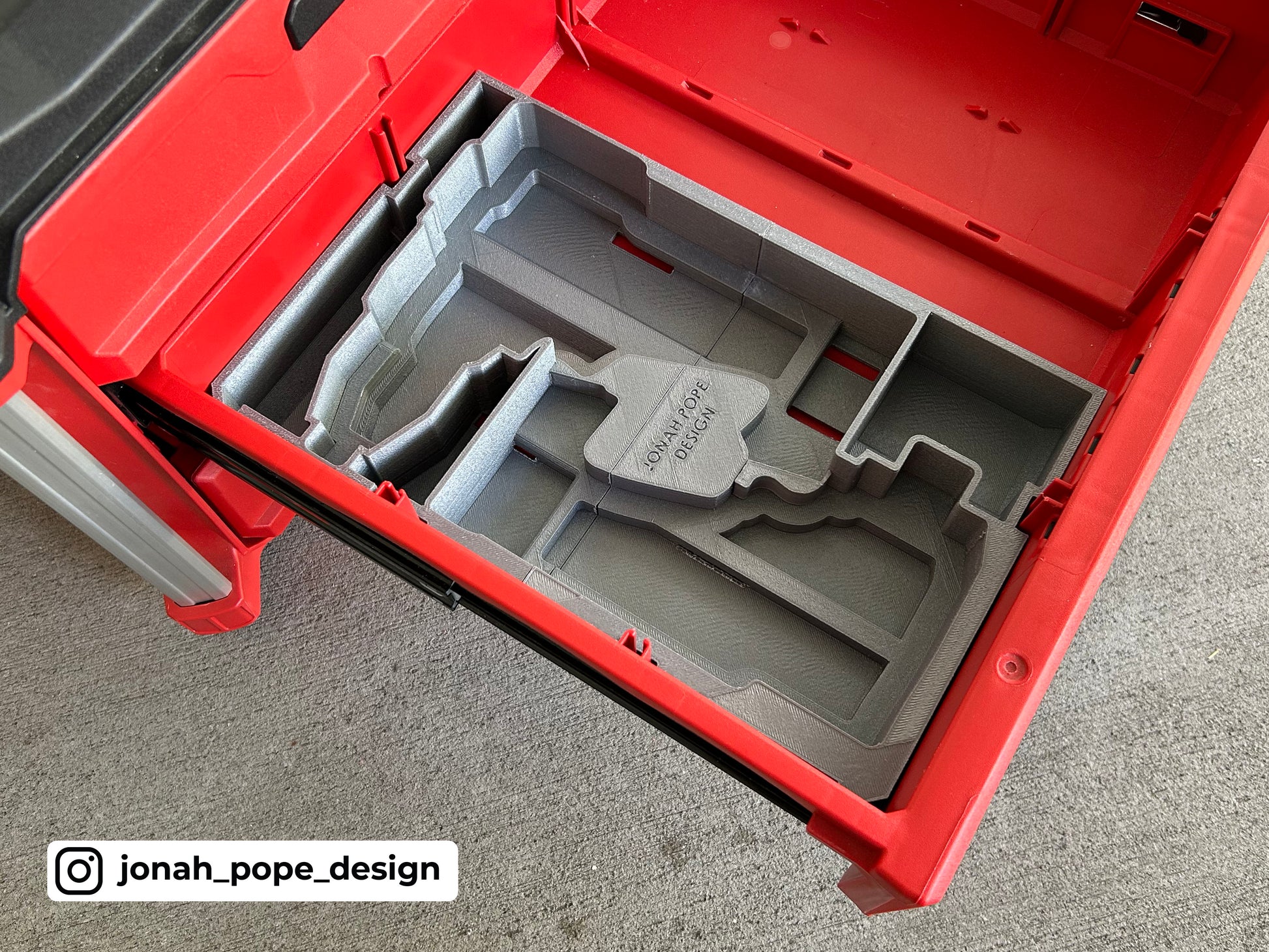

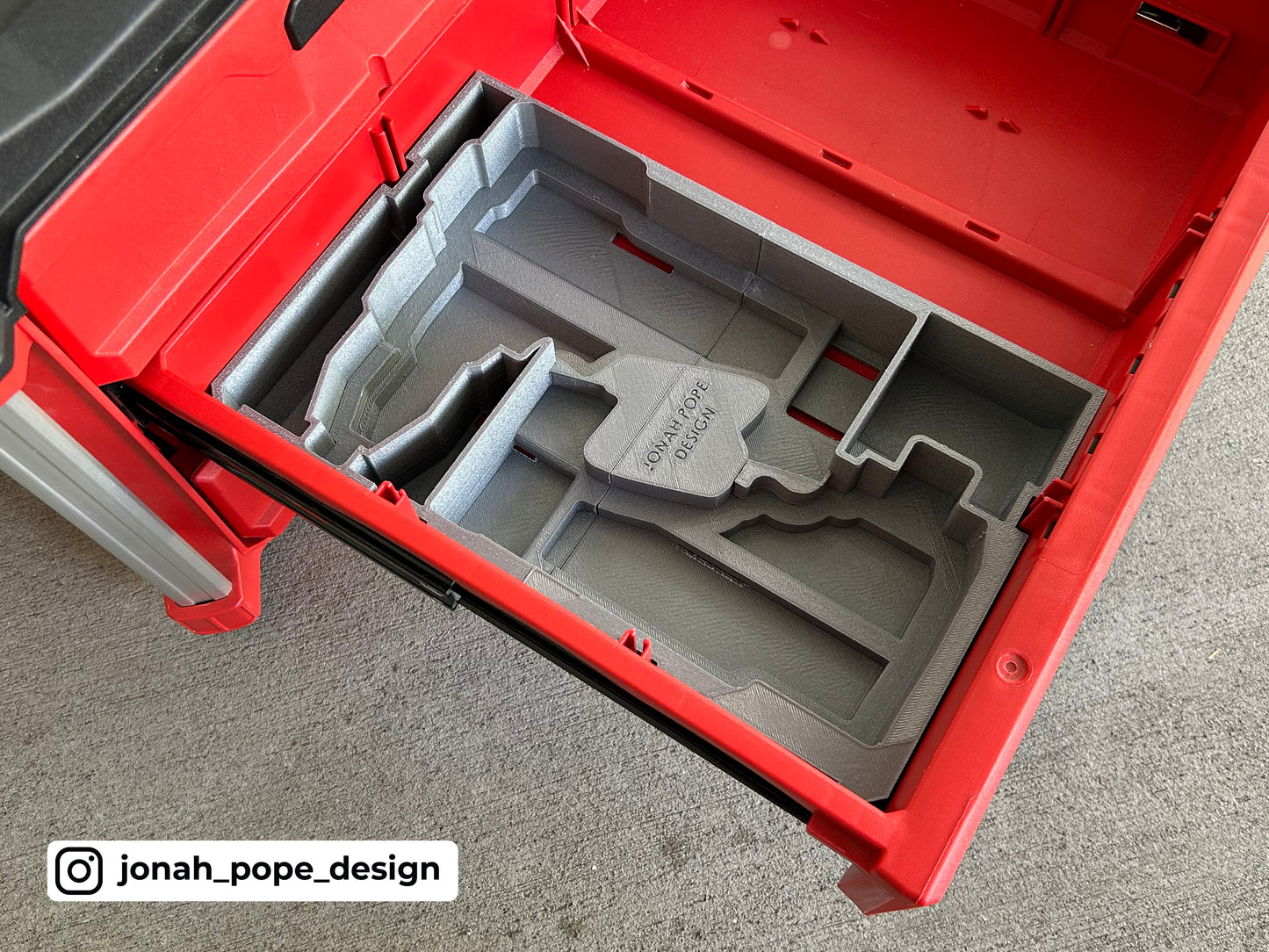

I have also included recessed areas to accommodate the stock driver bit holder as best as possible. The drawers have ridges in the bottom which I had to design around; thus, I was limited with how much space I could provide. Whether the skin fits will depend on the length of the driver bits you want to insert into the holder. If you need to remove them prior to inserting the tool, there are extra storage spots included around the design as well as underneath where the tools sit.

BELT HOOK NOTE:
If you use your M18 Gen 4 tools without the belt hook, you will be able to place the insert into the 3-drawer unit. If you use your Gen 4 tools with the belt hook, you will need to use the 2-drawer unit. Unfortunately, due to the distance the hook protrudes from the tool, it is not possible to fit the skin in the 3 drawer unit with the hook attached.

If your belt hook is on the same side as what is pictured above in the grid comparison photo (the left side) you will need to print the "left sided" files. If your belt hook is on the opposite side of the tool, you will need to print the "right sided" files which are the same designs except mirrored. By doing so, this ensures that your tool sits flat without the belt hook underneath which would prevent the tool sitting flat.
